Home > Stone crushing machine > VSI series centrifugal impact crusher
Processing ability: 0.26–30 m3
Rotate speed: 200–530 r/min
Diameter: 240–850 mm
Applied material: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone.

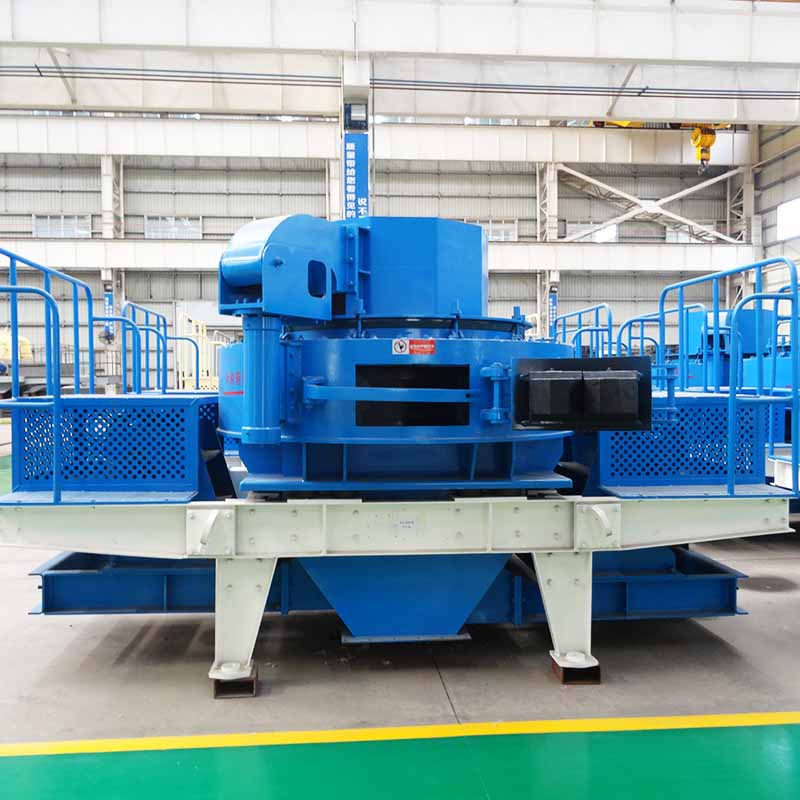

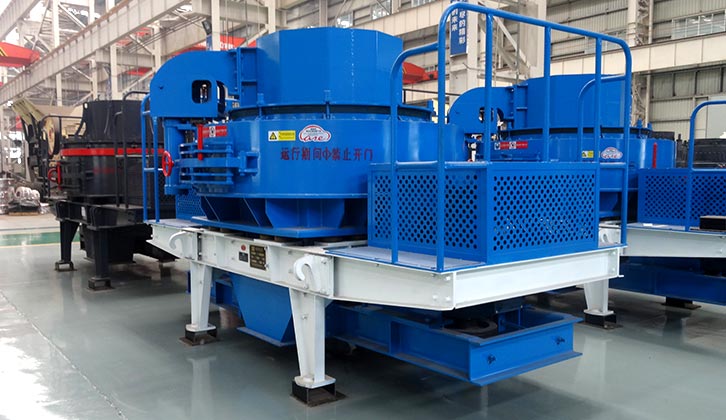

Chat LineGet a QuoteVSI series centrifugal impact crusher is the new generation energy-saving and high efficiency crusher in advanced international level, which is researched on basis of international advanced technology of similar products and year’s experience on researching, developing and manufacturing mining machinery. Its performance enables it play an irreplaceable role compared with other kinds of ore fine crushing equipment.
The equipment is widely in the crushing and reshaping of metallic and nonmetallic ores, building materials, artificial sand production and various of metallurgical slags.
VSI series centrifugal impact crusher is suitable for crushing brittle material with Moh’s hardness under 9 grade , not suitable for stick materials and aggregated rock with much clay.
1. Deep cavity rotor design, it can make materials have greater throughput and improve the efficiency of sand maker.
2“Stone hit stone”crushing chambers can reduce the cost of using the machine parts and attach to the purpose of lower usage cost.
3. VSI series centrifugal impact crusher is applied for dry oil lubricants, so that it’s easy to maintain and save expenses.
The material is crushed is the Centrifugal impact crusher by impacting and clashing with each other at high running speed. The machine can not only crash stones, but also reshape the stone particles.
According to material feeding method, centrifugal impact crusher is divided into entirely centre feeding type and centre feeding with waterfall down feeding type; According to compression strength and abrasiveness of material, the operation modes are divided into two crushing modes:“stone hit stone”and“stone hit steel (the machine)” Therefore the working way of the crusher includes four kinds: `'stone hit stone or `'stone hit steel (the machine) by centre feeding with waterfall down feeding. stone hit stone or stone hit steel(the machine) by entirely centre feeding.
| Model specification |
Max.feeding size （mm） |
Power （kw） |
Rotation speed of impeller （r/min） |
Capacity （t/h） |
Overall dimension （L×W×H） （mm） |
| FTM-06 | 35 | 2P 37-55KW | 2000-3000 | 12-30 | 2500×1620×2600 |
| FTM-07 | 45 | 4P 55-75KW | 1500-2500 | 25-55 | 2700×1760×2800 |
| FTM-09 | 50 | 4P 110-150KW | 1200-2000 | 55-100 | 3900×2000×3070 |
| FTM-10 | 60 | 4P 150-180KW | 1000-1700 | 100-160 | 4600×2350×3450 |
| Model | FTMVSI-7611 | FTMVSI-8518 | FTMVSI-9526 | FTMVSI-1140 | FTMVSI-1145 | FTMVSI-1150 | |
| Capacity (t/h) |
Feed both at center and sides |
80-180 | 140-260 | 200-380 | 300-520 | 350-610 | 360-650 |
| Feed at center |
40-90 | 70-130 | 100-190 | 160-260 | 180-355 | 190-365 | |
| Max.feeding size（mm） |
Soft material |
35 | 40 | 45 | 50 | 50 | 50 |
| Hard material |
30 | 35 | 40 | 40 | 45 | 45 | |
| Rotation speed （r/min） |
1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1150-1300 | 1150-1300 | |
| Double Motor power（kw） |
4P 110 | 4P 180 | 4P 264 | 4P 400 | 4P 440 | 4P 500 | |
| Overall dimension （L×W×H）（mm） |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5100×2700×3300 | 5500×2700×3300 | 5500×2700×3300 | |
| Power supply | 380V 50HZ | ||||||
| Lubrication station |
Double motor power of oil pump |
2×0.31Kw | |||||
| Safety assuance |
The oil pump assure enough oil supply and automatic switch off with no oil pressure,air cooling or water cooling,motor heating start up in winter |
||||||
| Overall dimension （L×W×H） （mm） |
820×520×1270 | ||||||
| Power of oil tank heater |
2KW | ||||||
